Free Fall Fire Valves are engineered to shut off fuel lines automatically, mechanically, and without fail the moment heat hits.
Price range: £561.02 through £740.04
When fire strikes, every second counts.
Hesitation, a flinch, or a one-tenth of a second delay can be the difference between containment and catastrophe.
Free Fall Fire Valves are engineered to shut off fuel lines automatically, mechanically, and without fail the moment heat hits.
Activated by a fusible link that melts at 70°C, the drop-weight fire valves close under gravity, isolating generator and oil system fuel supplies in seconds.
They’re simple, mechanical, and don’t rely on power to save power systems.
Used as a fire safety valve for both oil & gas.
Can be installed horizontal or vertical. 100% positive shut off.
American & Canadian Gas Association approved, UL listed.
Valves supplied with weight & lever.

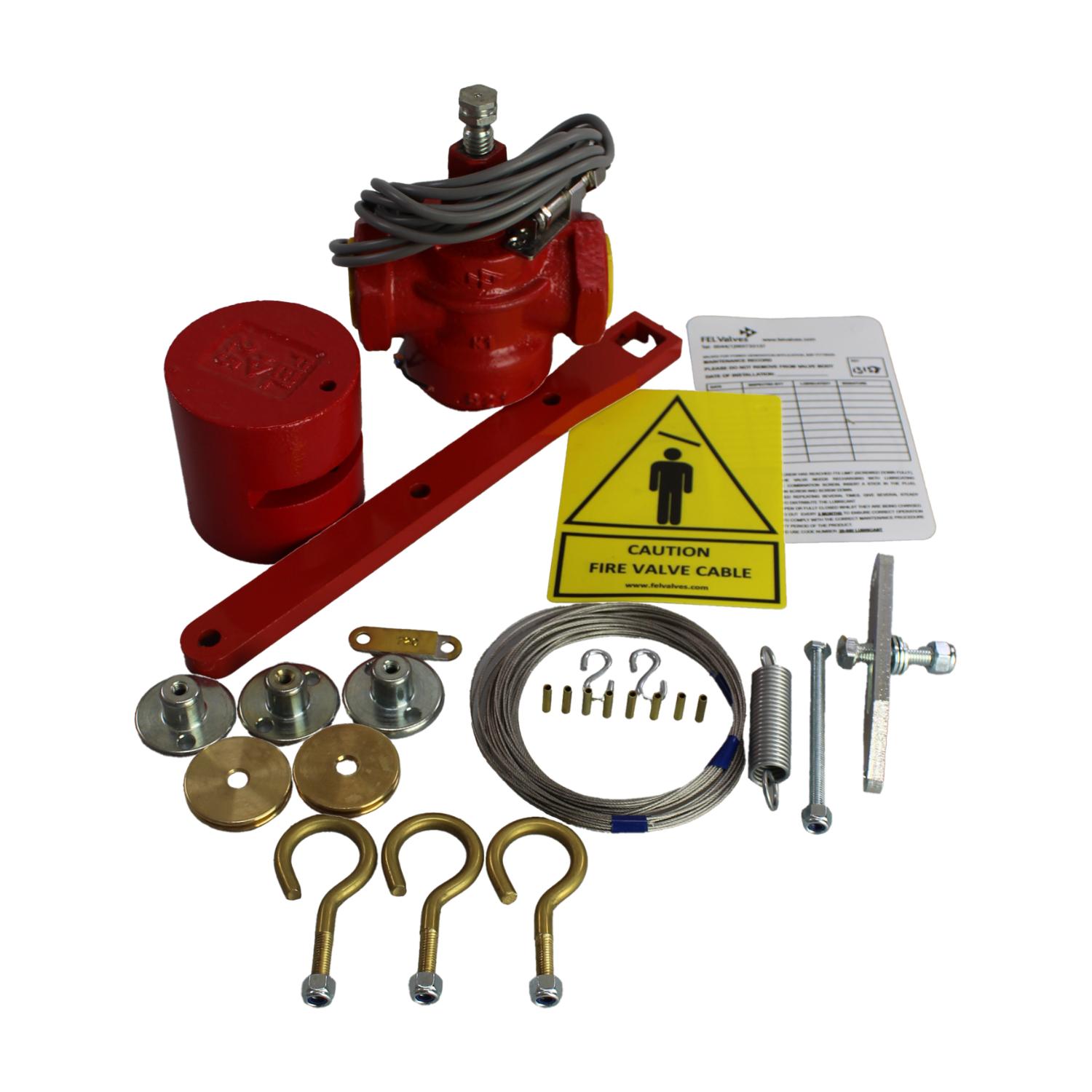

Supplied complete with kit containing 40mm diameter pulleys, ¼” BSP anchor, ¼” BSP M back plate, cable, wire crimps, tension spring & fusible links (qty of each depends on valve size). Various components are used with the free fall fire valves to actuate the valve to close & to activate a relay to switch off an appliance, pump etc. ‘Kit’ components above are also available individually.
Free fall fire valves are available up to 6” connection.
Equivalent to Landon Kingsway models.
